Furnace Replacement project
Replacing a worn oil furnace in a 1950s Lemoyne brick rancher
A worn oil furnace was no longer a good fit for this 1950s Lemoyne brick rancher. We installed a new oil forced-air unit, checked the existing duct connections, and completed the required inspection.
- Service
- Furnace Replacement
- Location
- Lemoyne, PA
- Home
- 1950s brick rancher
- Equipment
- Oil forced-air furnace
- Timeline
- Two days, plus the inspection
- Investment
- Major replacement
The old furnace was wearing out
The homeowner called us in the fall after the oil furnace became difficult to rely on. The cabinet and controls showed wear, and continued repairs would not address the age and condition of the whole unit. In a 1950s Lemoyne brick rancher, the furnace often sits in a basement with older duct connections, so replacement has to account for the space around the equipment, the existing supply openings, and the return path.
The goal was a clean changeover before colder weather settled in. The new unit needed to use the home's existing forced-air layout, keep the oil fuel arrangement, and fit the basement without forcing unnecessary changes to the house.
The homeowner's goals
- Replace the worn oil furnace
- Keep the existing forced-air layout usable
- Fit the new unit in the basement
- Complete the required inspection
The basement layout shaped the plan
Our technician inspected the existing furnace, oil connections, electrical wiring, venting, return opening, and supply plenum. The equipment had reached the point where replacement made more sense than continuing to repair individual controls. The duct openings also needed to be measured carefully because older ranch houses commonly have compact basement mechanical spaces and established sheet-metal connections.
Lemoyne requires a mechanical permit through the building permit application. The borough uses Approved Code Services, Inc. for code work and inspection, so we included that step in the schedule rather than treating the equipment change as complete on installation day.
From worn equipment to final inspection
Inspect the existing furnace
We documented the oil furnace, measured the available basement space, and checked the fuel, electrical, venting, return, and supply connections before selecting the replacement arrangement.
Prepare the installation
We removed the worn equipment and protected the nearby basement area. The new oil forced-air unit was positioned to line up with the home's existing duct openings and service clearances.

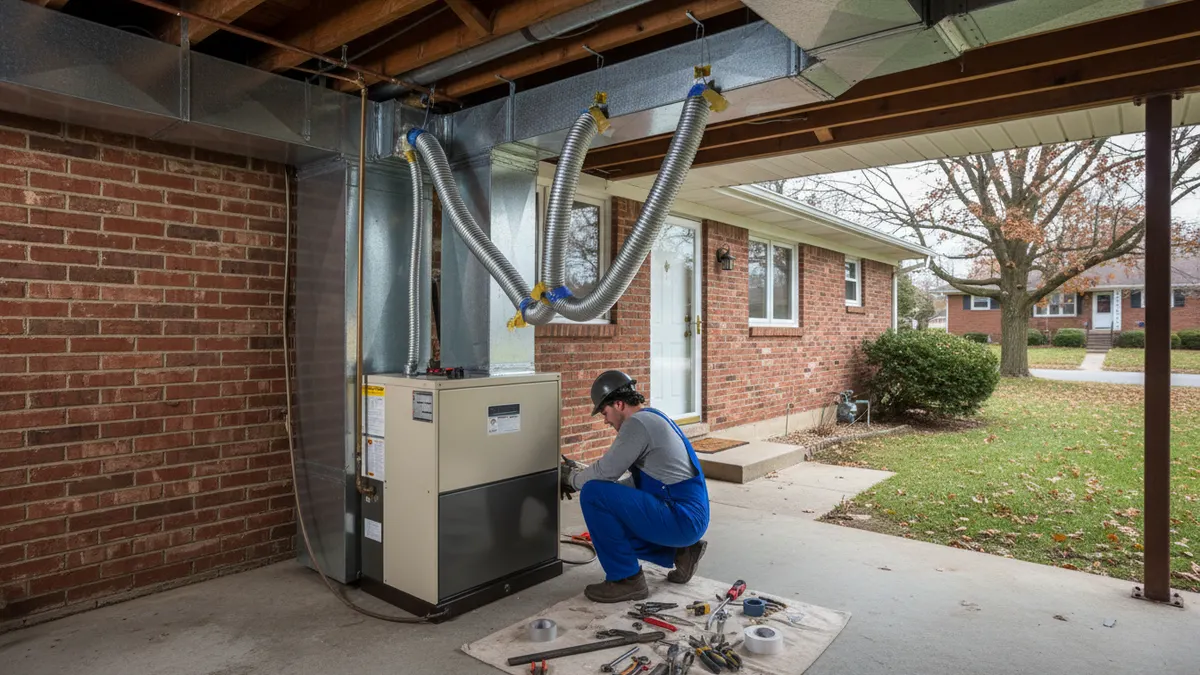

Connect the new unit
Our technicians completed the oil, electrical, venting, return, and supply connections. We sealed the duct transition so heated air would move into the existing distribution system instead of escaping at the joint.
Test operation and airflow
We started the furnace and checked ignition, burner operation, safety controls, temperature change, airflow, and the thermostat call. We also looked over the connections again after the system reached operating temperature.
Complete the inspection
We coordinated the required Lemoyne inspection through the borough's code process. After the inspection, the homeowner had a functioning replacement tied into the existing forced-air system.

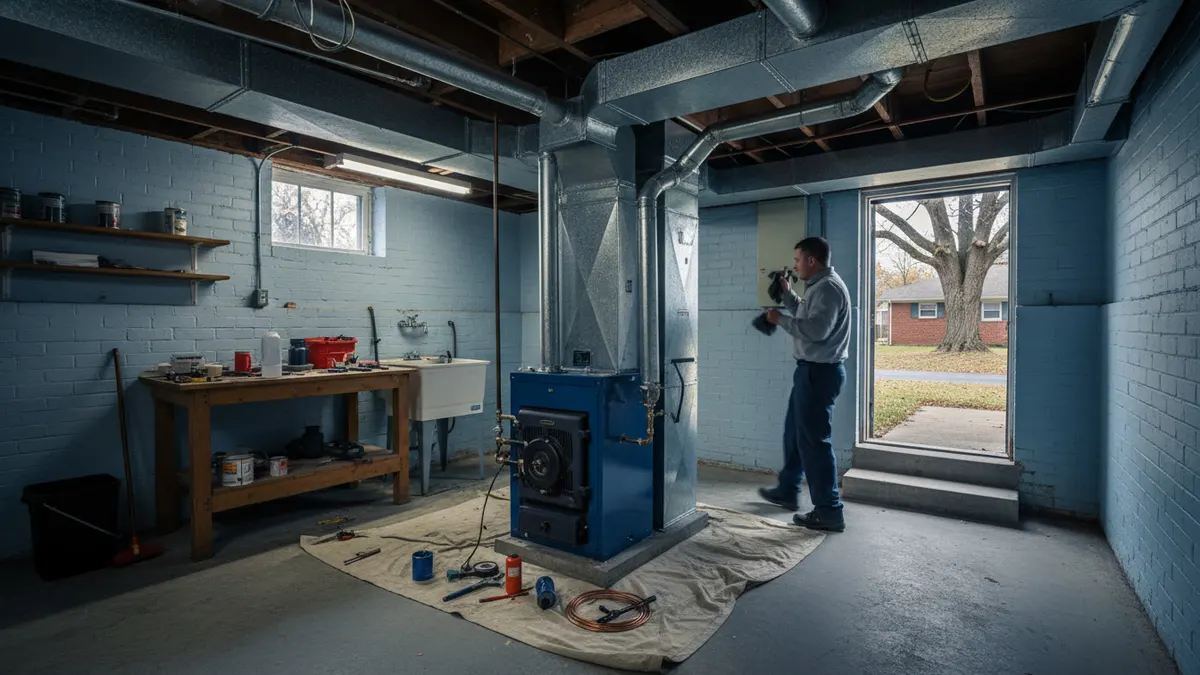

Heat returned through the existing system
The worn oil furnace was retired and replaced with a new oil forced-air unit over two days, followed by the required inspection. The new equipment connected to the rancher's existing duct layout, so the household did not need a wholesale change to the basement distribution system.
Our final checks confirmed that the furnace operated through a normal call for heat and that air moved through the supply and return connections. The project ended with the replacement installed, tested, and ready for the heating season.
What made this a major replacement
The cost centered on replacing a complete oil forced-air furnace, adapting the new unit to an older basement duct layout, and completing the fuel, venting, electrical, and permit steps required for the Lemoyne home.
Replacement equipment
A complete oil forced-air furnace replacement costs more than changing one control or burner part because the cabinet, controls, and heat-producing equipment all change.
Basement duct connections
The existing supply and return openings had to be measured and connected to the new cabinet. The fit of those older sheet-metal transitions affected the installation work.
Fuel and venting work
The oil connection, electrical connections, venting, and safety checks all had to be completed and tested as part of the new furnace installation.
Permit and inspection
Lemoyne requires a mechanical permit through the building permit application, with inspection handled through Approved Code Services, Inc. That code step was included in the project schedule.
